Pallistore Group systeem

Storex Pallistore Group system for (blue) berries

Storex supplies a cost-effective, flexible and easy-to-operate CA Pallistore – Group system for storage of (blue)berries

Main components of the Pallistore Group System

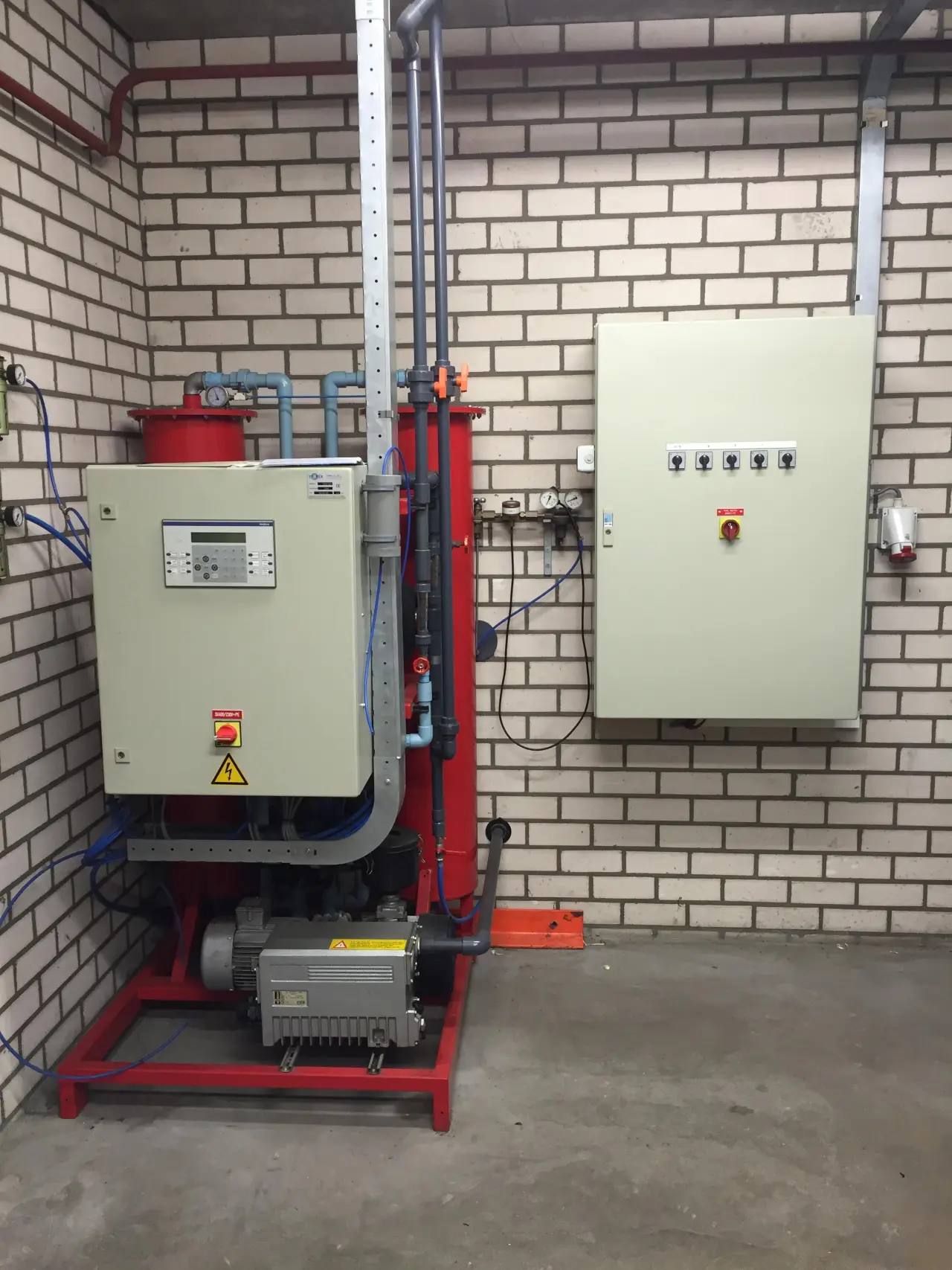

  • Control box with Auto Store CA control system  on PLC + Touchscreen
  • Router/internet for the Storex APP and ADM
  • O2/CO2 meter connected to 1-10 CA Pallistore group circulation systems
  • VSA N2 generator for nitrogen supply

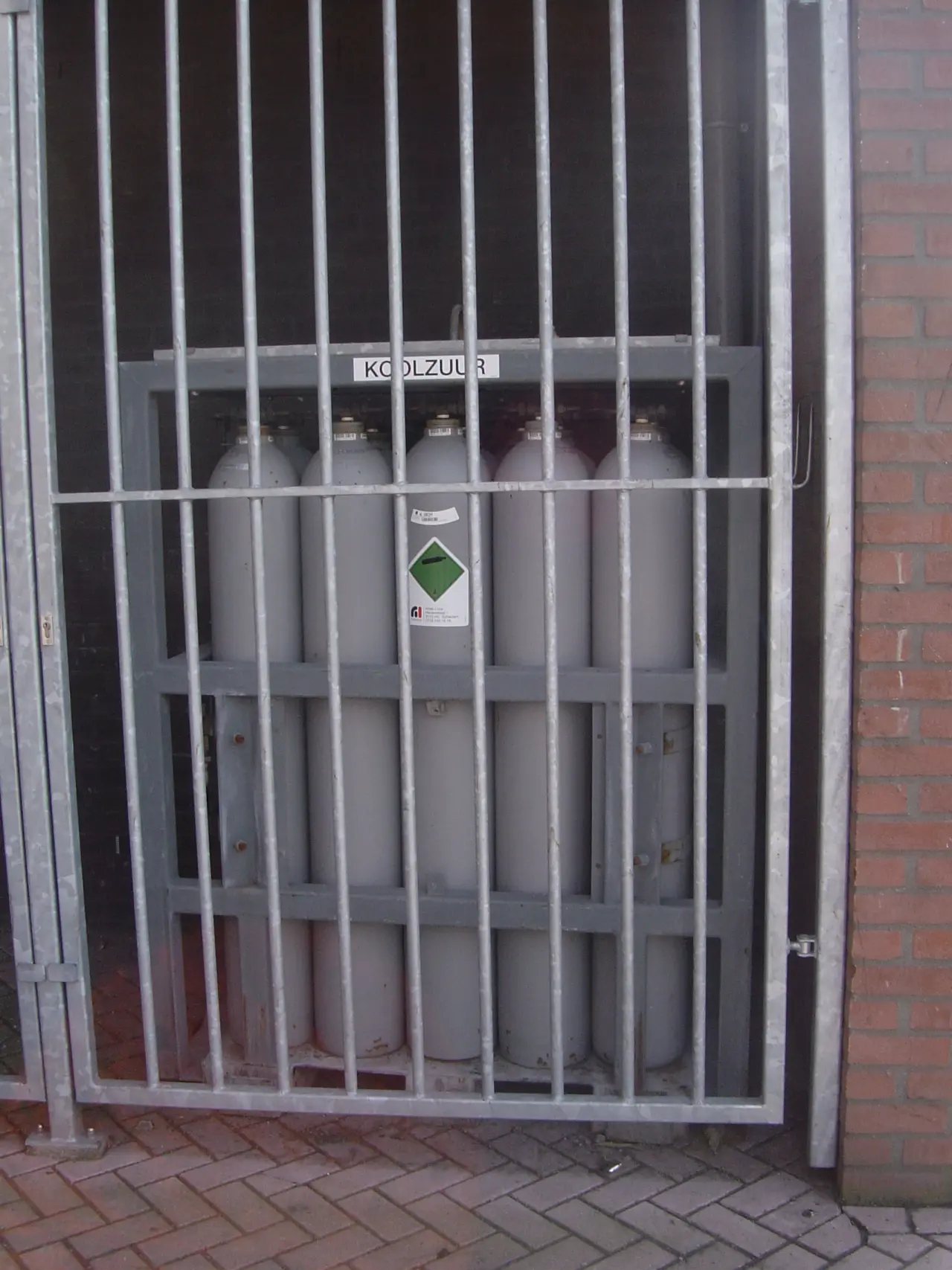

  • CO2 bottle (supplied by the customer) + pressure regulator for the supply of CO2
  • Fresh air supply (from air compressor)



  • Circulation system(s) consisting of:
    • A Circulation unit with fan for circulation + under/overpressure valve
    • Supply hoses with electric valve for N2, CO2 and aeration air
    • Measuring hose for O2/CO2

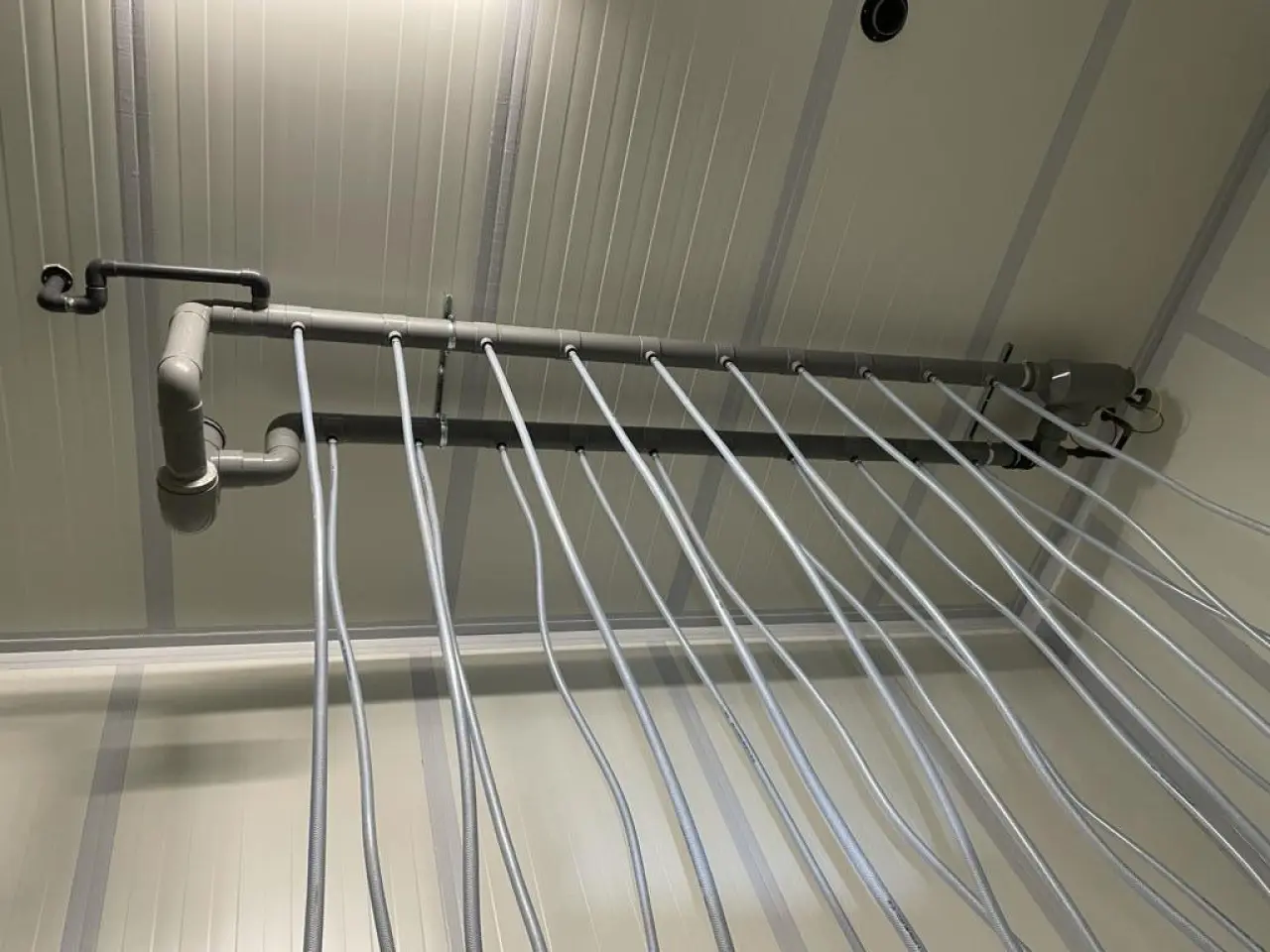

    • Supply and discharge pipe, 125 mm pipe, with connections for 10-50 individual CA pallet covers
    • Per pallet cover 2 flexible hoses with hand tap and connection to pallet cover for circulation of the controlled atmosphere
  • CA pallet covers
  • A choice of one of the closing systems for pallet covers



How does the Pallistore Group system work:

How does the Pallistore Group system work:

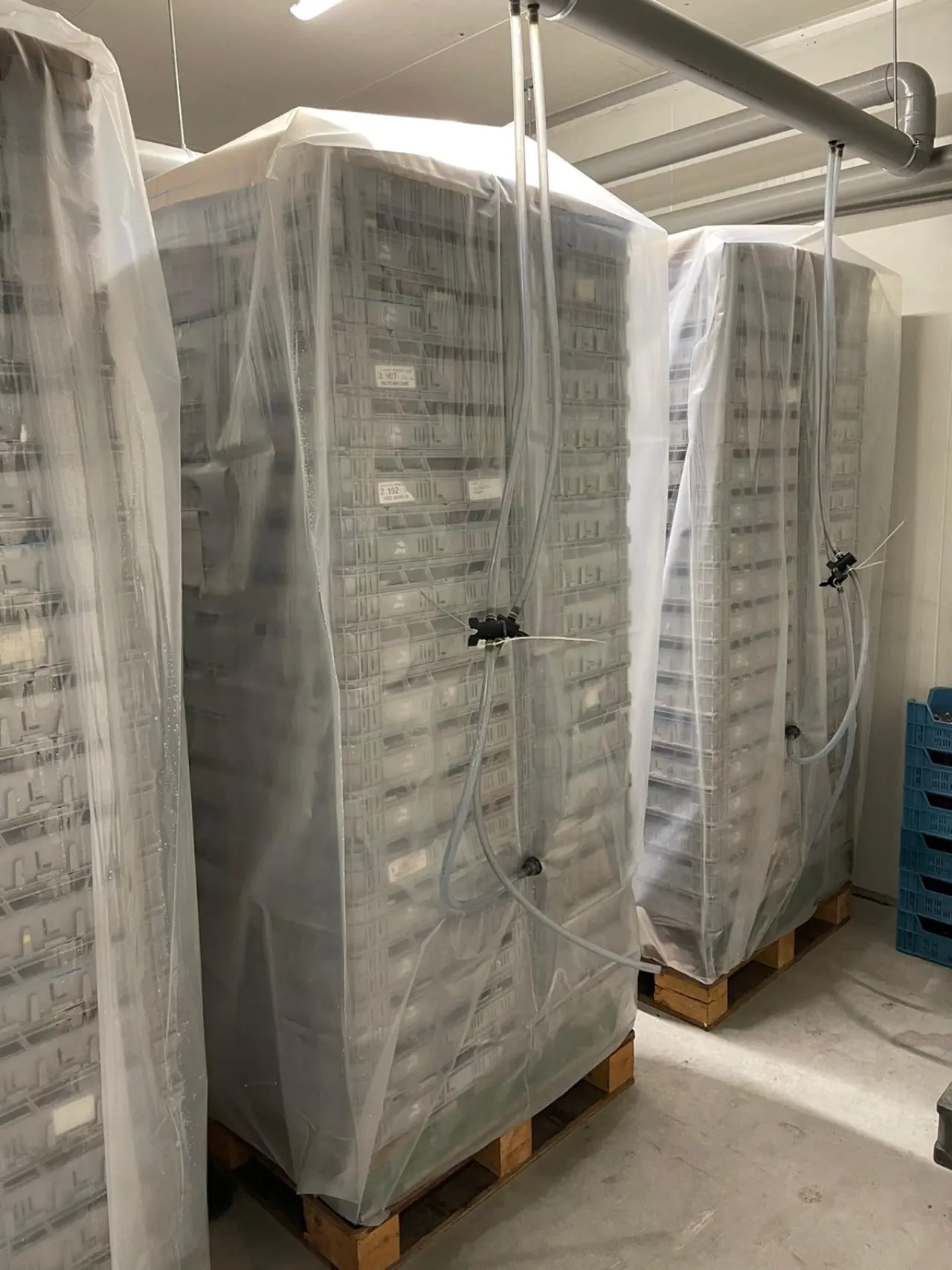

  • Pallets with blueberries placed in CA pallet covers.
  • The covers are closed with one of the available closing systems.
  • The pallet covers are individually connected with a flexible inlet and outlet hose (with manual valve) to a PVC circulation system. (10 – 50 pallet covers per group)
  • The circulation unit is switched on and the Auto Store CA control  is deemed to be activated for measuring and controlling O2/CO2 on this group.
  • Circulation takes place through all connected pallet covers.
  • During the period of CA storage, individual CA pallet covers can be added or disconnected from the group. Due to the large volume of air circulation in all covers, the CA conditions are easy to install and maintain.







Benefits of Pallistore Group system

Benefits of Pallistore Group system

  • Stable and even CA climate in the group of CA pallet covers through air circulation.
  • The air circulation in the CA pallet cover ensures an even climate in the CA pallet cover.
  • With newly connected CA pallet covers, the climate in the new CA Pallet is set quickly.
  • Easy to operate.
  • Handy systems for CA pallet cover closure and tube connection systems.
  • Perfect CA storage results for (blue) berries.

 Choose the future of blueberry storage with the Pallistore Group system.
