Cloud-based SCADA + Temperature control

For more information on SCADA system en Temperature control download our PDF

SCADA system

Read more about our Cloud based platform with advanced SCADA system for your temperature control system.

Auto Store Temperature measurement & control

The Auto Store Temperature Measurement & Control System provides an advanced cooling program for accurate measurement and control in CA cold stores. The operator has one platform for both temperature and CA control and all relevant data.

Auto Store temperature measurement & control, the main components;

  • A powerful software program for accurate temperature measurement & control + PLC and communication cards
  • Can modules + PT1000 temperature sensors
  • Remote control via App and ADM
  • Integrated in control box of cooling system
  • Optional relative humidity RH sensors with high accuracy in the range 90-100%
  • With pressure sensor the effect of cooling actions can be followed
  • We can also perform a gas-tight test on a CA room with the pressure sensors

For temperature and pressure measurement in CA rooms, we supply a CAN module per 2 CA cells that can be connected to 8 temperature sensors and 2 pressure sensors for each cell. The CAN modules are connected to the Autostore (D)CA control system via a Modbus cable.
It is customary to place 2x product temperature (warmest and coldest place), 1x thermostat sensor and 1x defrost sensor.

Available data of settings and measurements per room from

  • Set temperature and measurements from sensors
  • Cooling time, cooling actions, both from the current date and the total of the previous day
  • Ventilation time, ventilation actions, both from the current date and the total of the previous day
  • Defrost actions, defrost time, both from the current date and the total from the previous day
  • Alarms, daily reports
  • Remote control via App and ADM on one platform

The Storex temperature and control system is successfully used by various cooling companies and projects, enabling them to achieve optimal temperature control in their CA rooms. Contact us for more information about the possibilities and applications of our system.

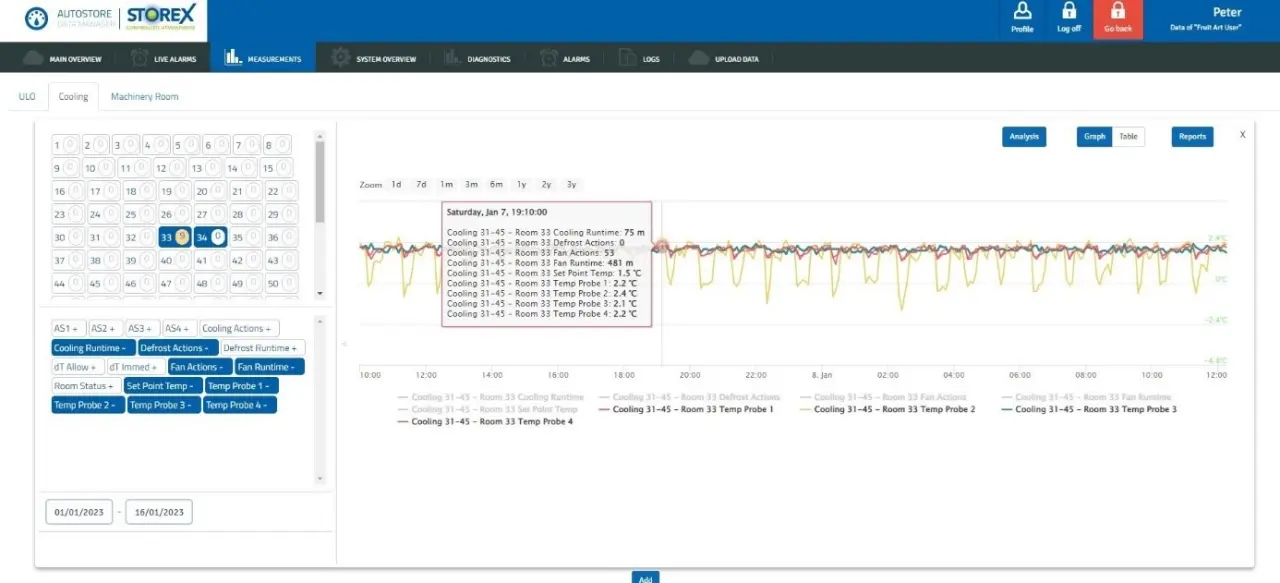

Some screenshots of temperature control in ADM.

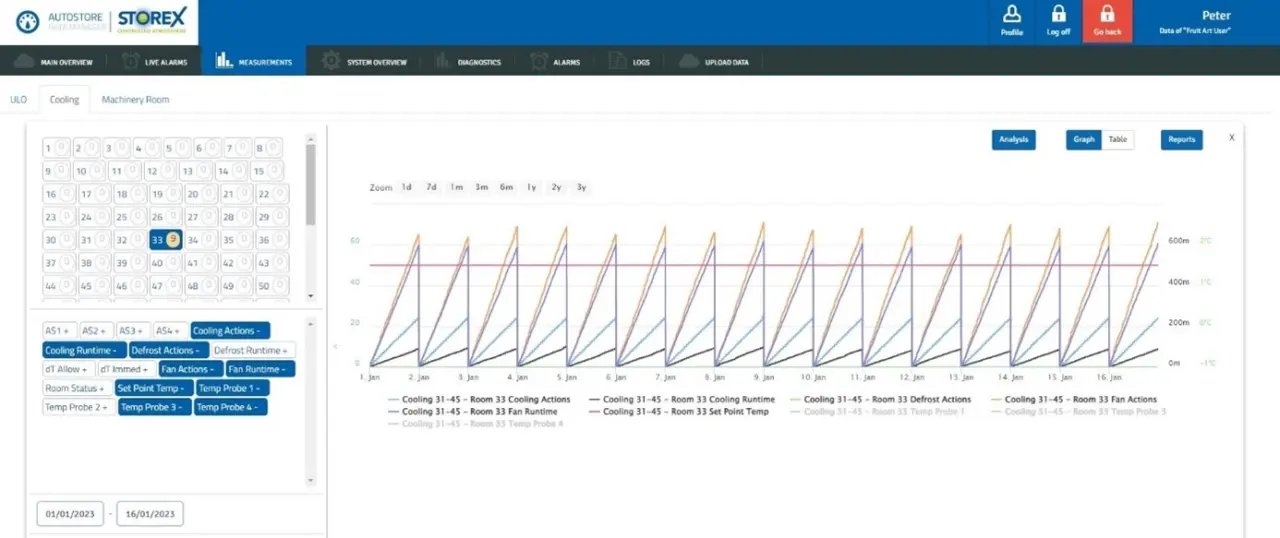

In 1 graph: cooling time, cooling actions, ventilation time, ventilation actions, defrost time, defrost actions

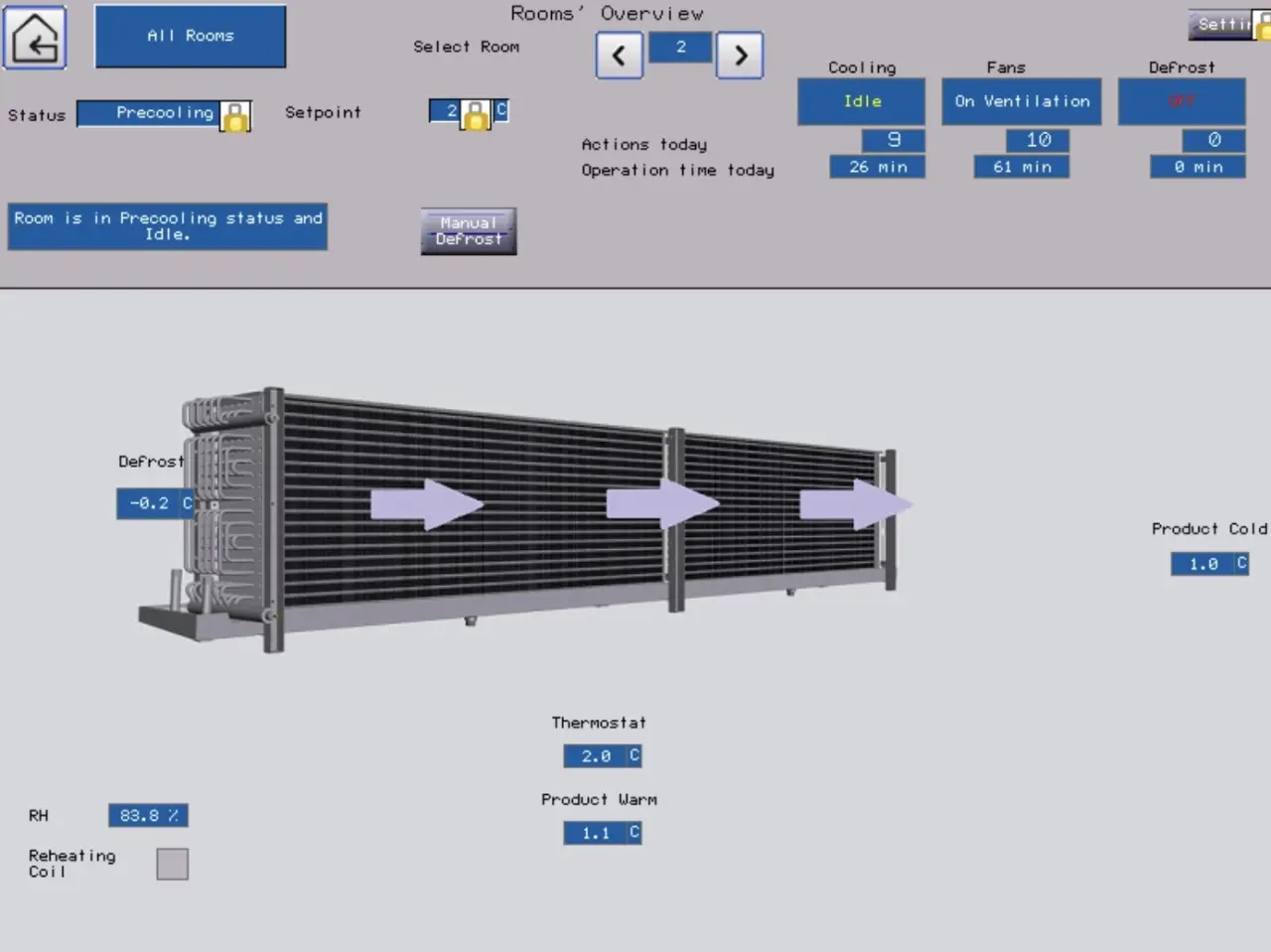

​​​​​​​Details temperature control. 4 temperature sensors; thermostat, cooling block, product hot and product cold sensor.
