Closing systems for pallet covers

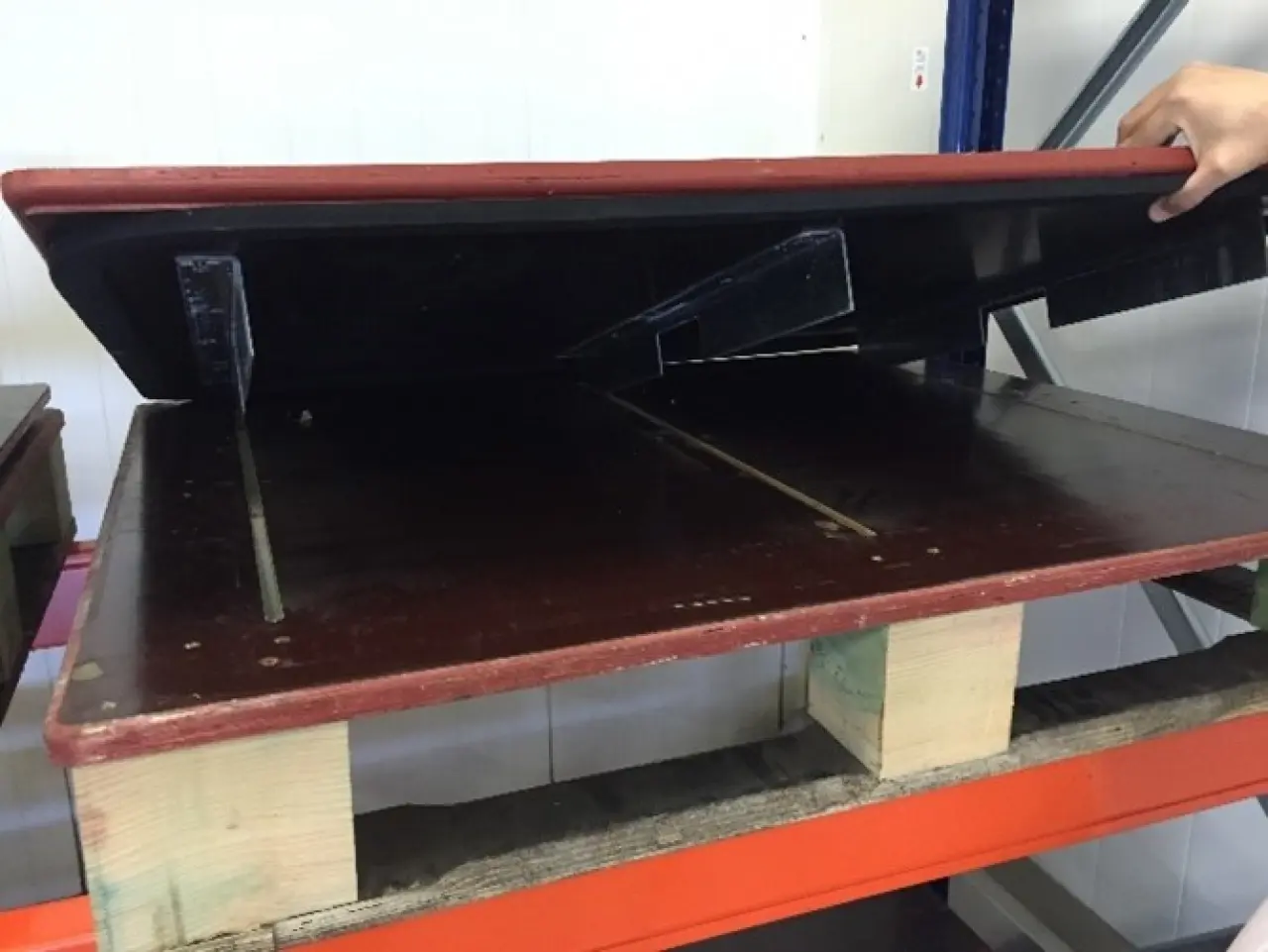

1. Push-lock system (Pallet with a 2x wooden plate

How does it work?

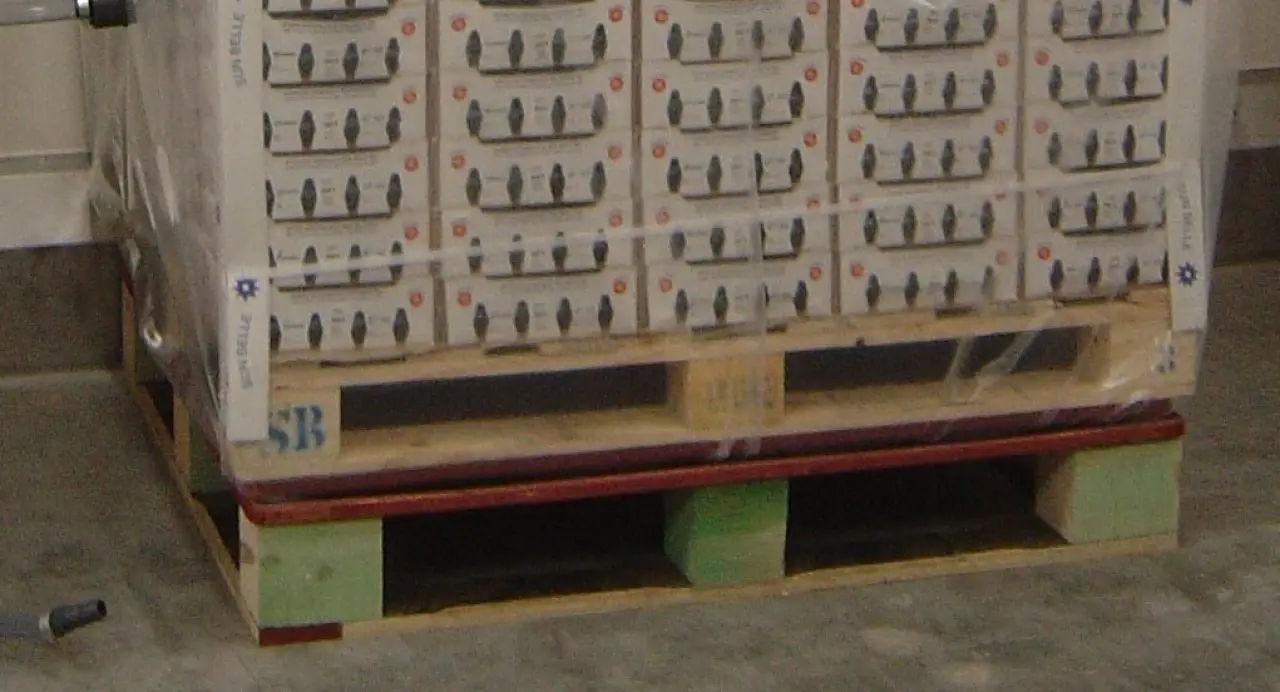

It starts with a special pallet with a waterproof multiplex plate on the top that is provided with slotted holes. A 2nd waterproof plywood plate is placed on top of this, under which a foam rubber gasket is attached all around and steel angle profiles at locations so that the profiles fit into the slotted holes of the pallet. The pallet with blueberries is placed on the top wooden plate of the pallet and covered with the pallet cover.

With the forks of a forklift truck, the steel profiles of the top plywood that have sunk through the slots become 2-3 cm. Lifted. This creates a small space between the gasket of the top plate and bottom plate on the pallet. The pallet cover is then pushed tightly under the foam rubber gasket. The forklift truck then lowers the load again and presses the plywood sheet with the foam rubber part firmly onto the pallet cover, sealing it gas-tight for gas-tight and optimal CA storage.

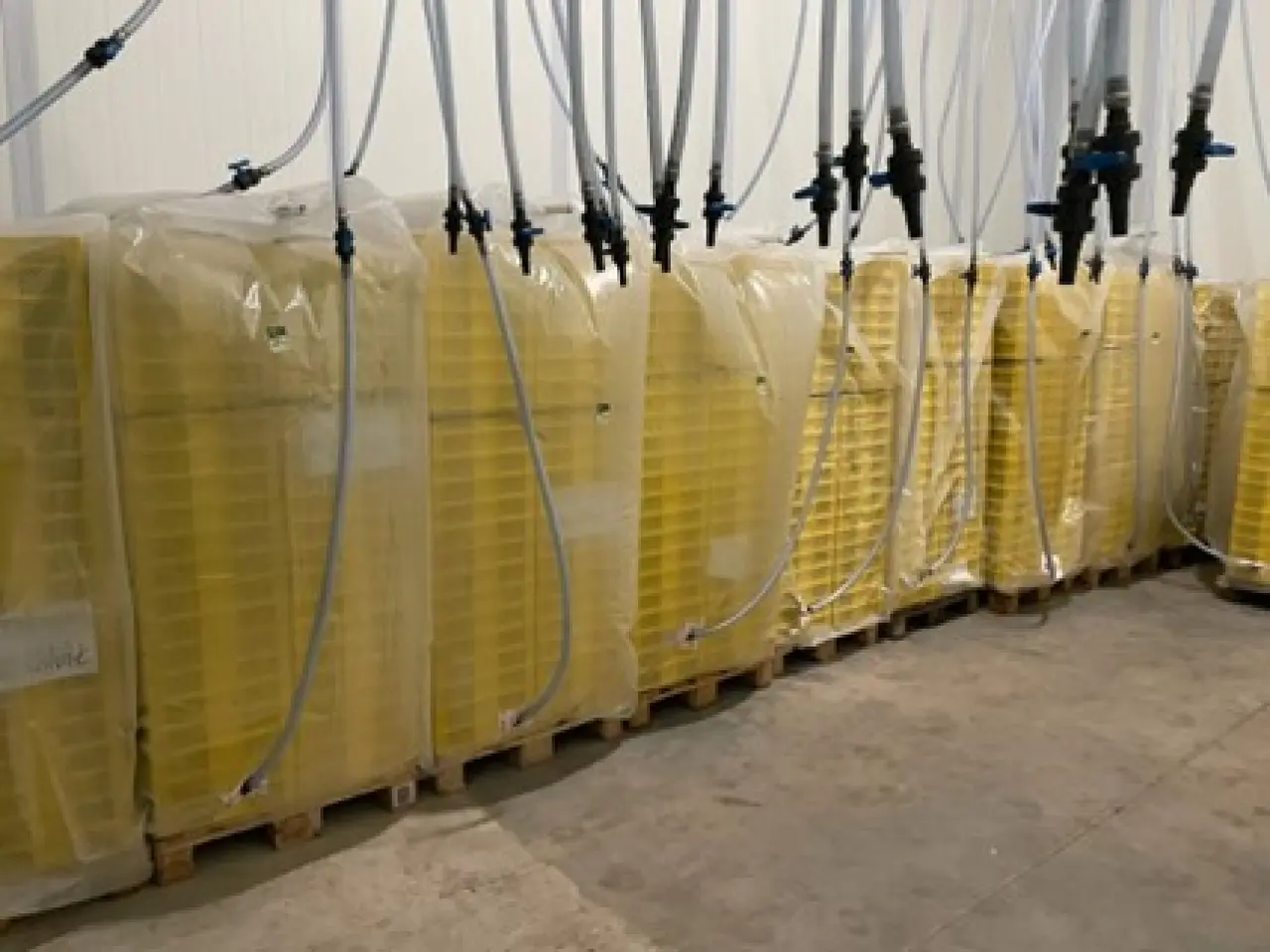

2. Clamping profiles for a folded CA pallet cover

2. Clamping profiles for a folded CA pallet cover

Discover our handy clamping profiles for a folded CA pallet cover and simplify the packing process of your pallets with berries.

How does it work?
We start with a rolled up pallet cover, with the closed side (bottom) free to place a pallet. This prepared pallet cover is placed on a standard pallet of 1.20 x 1.00 metres.
Then we place the pallet with berries on the bottom of the pallet cover. The pallet cover is unrolled to the top, neatly and evenly folding the original folds of the pallet cover.

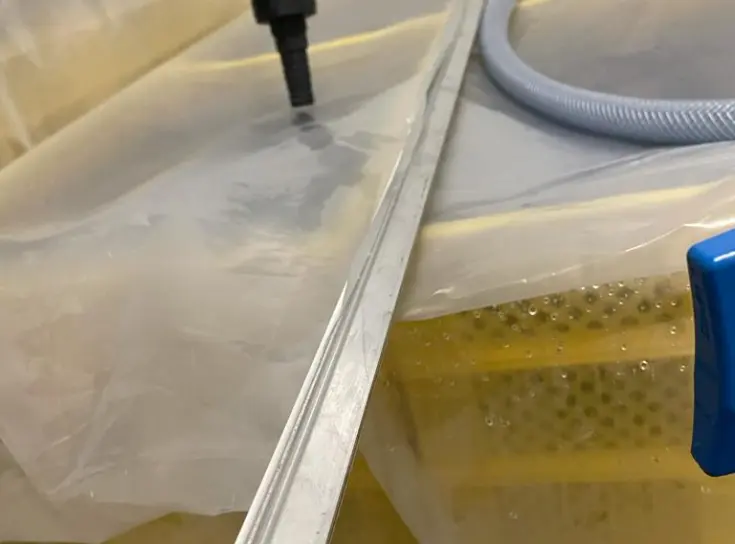

The foil of the pallet cover is placed in an open profile with a length of approximately 1.30 metres. A second tubular profile is then clamped onto the foil in the profile, so that the foil is closed tightly.

Clamp profiles

Packing pallets of berries becomes an effortless task with our clamping profiles. Enjoy the benefits:

  • Pack quickly and efficiently with a folded CA pallet cover
  • Sturdy and reliable sealing of the film
  • Easy to use and install
  • Suitable for standard pallets of 1.20 x 1.00 metres

Choose our clamping profiles and optimize the packing process of your pallets of berries. Contact us today and find out how this convenient solution improves your logistics operations.

Resume:

Discover our handy clamping profiles for packing pallets with a folded CA pallet cover. The process starts with placing a prepared pallet cover on a standard pallet. The pallet with berries is then placed in the pallet cover and the cover is unrolled to the top. Our clamping profiles are used to firmly close the foil of the pallet cover.

With our clamping profiles you enjoy advantages such as fast and efficient packing, a reliable sealing of the film, easy use and installation, and suitability for standard pallets. Improve your logistics operations by choosing our clamping profiles. Contact us today to learn more about this convenient solution.

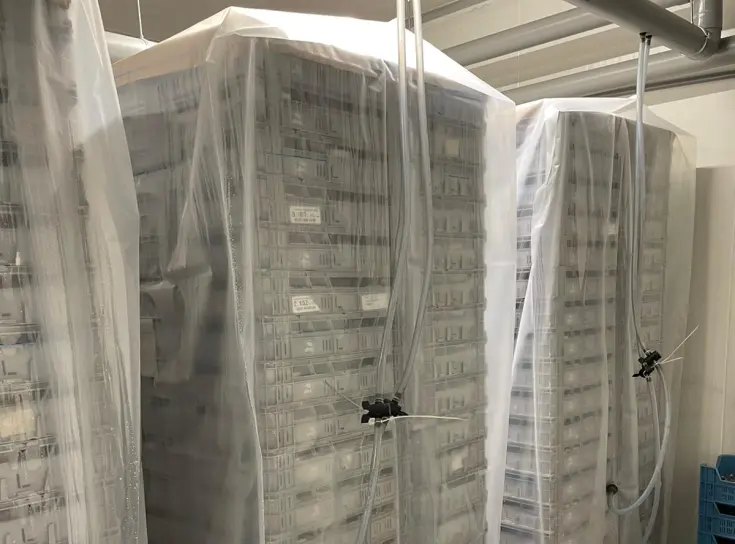

3. Waterlock system

3. Waterlock system

The system works through the use of a specially designed fiberglass container, into which a pallet is placed and filled with water. Then the pallet with berries is placed on top and the pallet cover is pulled over the boxes, with the open top falling into the water. This creates a gastight space under the pallet cover. The system ensures optimal storage conditions for berries and offers advantages such as simple installation, ease of use and suitability for different berries and pallet sizes. Contact Storex for advice and the right berry storage solution.
